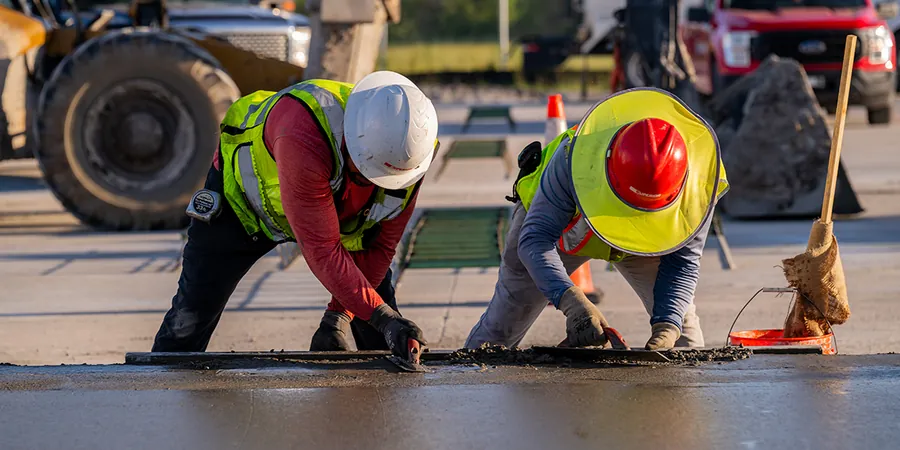

The concrete paver’s first pass in Dundalk demands a design that accounts for the town’s soft alluvial clays, deposited where the Castletown River meets Dundalk Bay. A rigid pavement design here relies on the stiffness of the concrete slab to distribute axle loads across subgrades with CBR values often below 3%. The slab thickness, joint spacing, and reinforcement are not chosen from a catalogue—they are calculated from plate theory, using a realistic k-value derived from in-situ testing on the underlying cohesive soils. In this part of County Louth, groundwater sits high throughout winter, so drainage and subbase permeability become as critical as the concrete mix specification. Before finalising the structural section, we often run a sand cone density test on the prepared subgrade to verify compaction uniformity under the future slab.
A rigid pavement on Dundalk's soft clays is a structural slab, not just a wearing course—the soil-structure interaction governs the joint spacing and reinforcement.
Service characteristics in Dundalk
- Joint layout and load transfer: Dowel bar systems sized for 40-year design life.
- Concrete grade: Minimum characteristic 28-day cube strength of 37 N/mm² for maritime exposure.
- Subbase type: Cement-bound granular layer over a separation geotextile on soft clay.
Critical ground factors in Dundalk
Much of Dundalk’s urban expansion has occurred on reclaimed estuarine flats south of the town centre, where the stratigraphy includes 4 to 8 metres of soft silty clay over glacial till. For rigid pavement design, the primary risk is not bearing failure but long-term differential settlement as the clay consolidates under the embankment weight. When settlement basins form beneath a rigid slab, voids develop, and load transfer at the joints degrades rapidly. A secondary risk is sulfate attack on the concrete from the slightly saline groundwater near the quay area—SRPC or sulfate-resisting cement is specified when sulfate levels exceed 600 mg/l in the soil. The technical team maps these risks through a combination of CPT soundings and laboratory consolidation tests before any pavement thickness calculation begins.
Our services
The rigid pavement service covers the full design chain from ground investigation interpretation to joint detailing, adapted to the specific ground conditions found across the Dundalk area.
Subgrade reaction modulus testing
Field plate load tests and back-calculation from CPT data to determine the k-value on Dundalk's soft clay and till formations.
Concrete thickness and joint design
Fatigue analysis based on cumulative traffic loading, including temperature curling and moisture warping for the local climate exposure.
Sulfate resistance specification
Soil and groundwater chemical analysis near the bay to define the Design Sulfate Class and select appropriate cement type and minimum cover.
Frequently asked questions
What thickness of concrete slab is typically required for industrial pavements in the Dundalk area?
For heavy industrial traffic on the soft clays found south of Dundalk, unreinforced slabs generally range between 220 and 280 mm, depending on the k-value measured from field tests. The final thickness is calculated using edge-loading analysis per IRC:58, factoring in the expected wheel loads from HGV traffic accessing the M1. A thinner slab can only be justified where the subgrade has been improved or where a cement-stabilised subbase provides a higher composite k-value.
How does the high water table near Dundalk Bay affect rigid pavement design?
A water table within 1.0–1.5 metres of formation level reduces the effective subgrade strength and increases the risk of pumping at transverse joints. The design response includes a free-draining granular subbase of at least 150 mm thickness, positive crossfall of 2.5% on the formation, and sealed joints to prevent water ingress into the subgrade. In areas with particularly poor drainage, an additional cement-bound subbase layer is introduced.
What is the cost range for a rigid pavement design package for a Dundalk industrial site?
A complete rigid pavement design package, including site investigation interpretation, Westergaard analysis, joint detailing, and construction specifications, typically costs between €1,670 and €5,350. The variation depends on pavement area, traffic loading complexity, and whether sulfate resistance or ground improvement recommendations are required.
