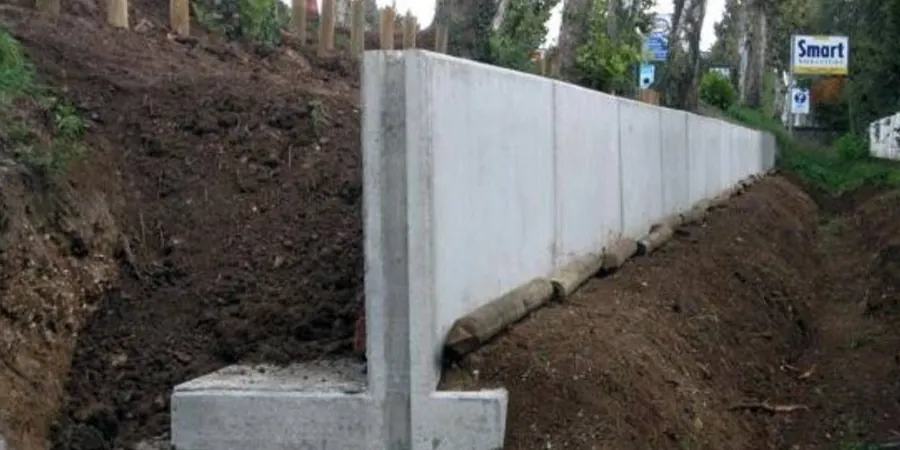

Eurocode 7 (EN 1997-1:2004) governs retaining wall design across Ireland, and in Dundalk the local ground conditions turn that standard into a practical challenge every project must address. Dundalk sits on a mix of glacial till, alluvial silts, and occasional soft clay lenses near the Castletown River, which means bearing capacity and lateral earth pressures vary significantly across short distances. A wall designed generically without site-specific data often fails the serviceability limit state within the first decade. Our laboratory team runs the full suite of index and strength tests needed to populate a reliable geotechnical model, from triaxial effective stress paths to Atterberg limits that define the fine-grained behaviour. For deeper cuts or walls adjacent to existing structures, we combine retaining wall design inputs with deep excavation monitoring data to manage displacement risks during construction. The result is a design basis that reflects actual Dundalk stratigraphy, not textbook assumptions.
Effective cohesion in Dundalk's glacial till degrades quickly when drainage fails. We design for the drained case first, then check undrained conditions for the short-term safety margin.
Service characteristics in Dundalk
Demonstration video
Critical ground factors in Dundalk
The most frequent mistake we observe in Dundalk is designing a gravity wall with a base width that works on paper but ignores the low shear strength of the alluvial layer at founding depth. A contractor excavates to formation, sees 'firm brown clay,' and proceeds without testing, only to have the wall tilt forward after two wet winters when the clay softens under prolonged saturation. Another recurring issue is underestimating the surcharge from adjacent roadways. The M1 and the R132 both carry heavy HGV traffic, and the cyclic loading from passing trucks imposes a lateral stress regime on nearby retaining structures that static design calculations often overlook. Without a proper site investigation that includes in-situ permeability testing to characterise drainage rates, the wall backfill can saturate, pore pressures increase, and the factor of safety drops below unity over a single storm event. Time-to-failure in these soils is rarely immediate; it is progressive, which makes the absence of monitoring even riskier.
Our services
Our retaining wall design support in Dundalk spans laboratory testing, parameter derivation, and verification testing during construction. We work with consulting engineers to build the geotechnical model that feeds limit equilibrium and finite element analyses.
Strength & Deformation Testing
Triaxial (CIU, CAU), direct shear, and oedometer tests to define φ', c', and stiffness parameters for serviceability and ultimate limit state calculations.
Ground Investigation Support
We coordinate sampling from boreholes and trial pits across Dundalk, handling logistics from the Coes Road industrial area to the Marshes. Sample quality is Class 1 to 4 per EN 1997-2.
Construction Verification
Density and permeability tests on placed backfill and drainage layers, confirming that as-built materials match the design assumptions for granular friction and hydraulic conductivity.
Frequently asked questions
What soil parameters does Eurocode 7 require for retaining wall design in Dundalk?
For Design Approach 1 (DA1), you need effective friction angle (φ'), effective cohesion (c'), undrained shear strength (cu) for short-term conditions, bulk unit weight (γ), and stiffness parameters for serviceability checks. In Dundalk's glacial till, φ' typically ranges from 32° to 38° depending on density, while alluvial clays show cu values between 25 and 60 kPa. Our lab delivers these from triaxial and direct shear testing per EN ISO 17892-10 and ASTM D4767.
How much does a retaining wall design soil testing package cost?
A typical testing package for a retaining wall in Dundalk ranges from €1,070 to €4,100, depending on the number of boreholes, the depth of investigation, and the specific tests required. A basic package for a small garden wall might include classification tests plus direct shear, while a full commercial project near the Castletown River would add triaxial tests, oedometer consolidation, and permeability assessment. We provide a fixed-price quotation after reviewing the site location and wall geometry.
Which type of retaining wall suits Dundalk's soft alluvial ground?
Embedded walls or cantilever piles often perform better than gravity walls in the soft alluvium south of the town centre because they bypass the weak near-surface layer and transfer load to the denser till below. For modest height differences, reinforced soil walls with good quality granular backfill can work but demand rigorous drainage detailing. The choice depends on the undrained shear strength profile and the groundwater regime, both of which we quantify through site-specific laboratory testing.
How long does the laboratory testing take for a retaining wall project?
Classification tests (moisture content, Atterberg limits, particle size distribution) are typically reported within 5 to 7 working days. Consolidated-undrained triaxial tests, which require saturation and consolidation stages, take 10 to 15 working days. Oedometer consolidation tests run 7 to 10 days. We can fast-track critical parameters if the site programme demands it, and we always discuss the testing schedule during the proposal stage so it aligns with the design team's milestones.
